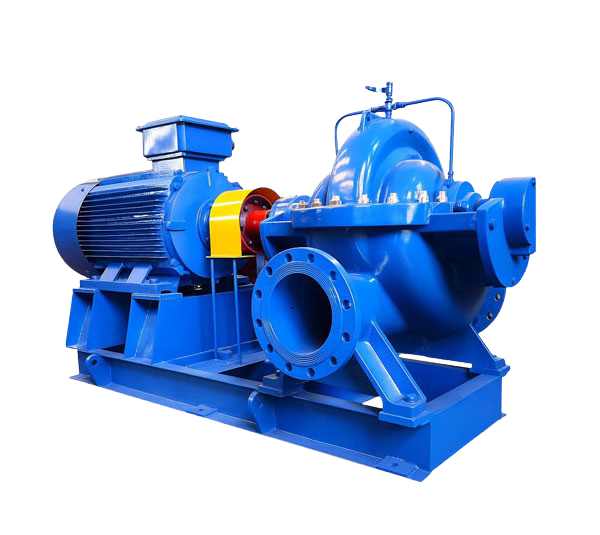

ASN
Horizontal Split Casing Centrifugal Sea Water Destination PumP
ASN Series Horizontal Split Casing Centrifugal Pump adalah pompa sentrifugal single-stage, double suction, horizontal split casing (axially split) yang dirancang khusus untuk aplikasi transfer air laut (sea water), air industri, dan sistem pendingin.

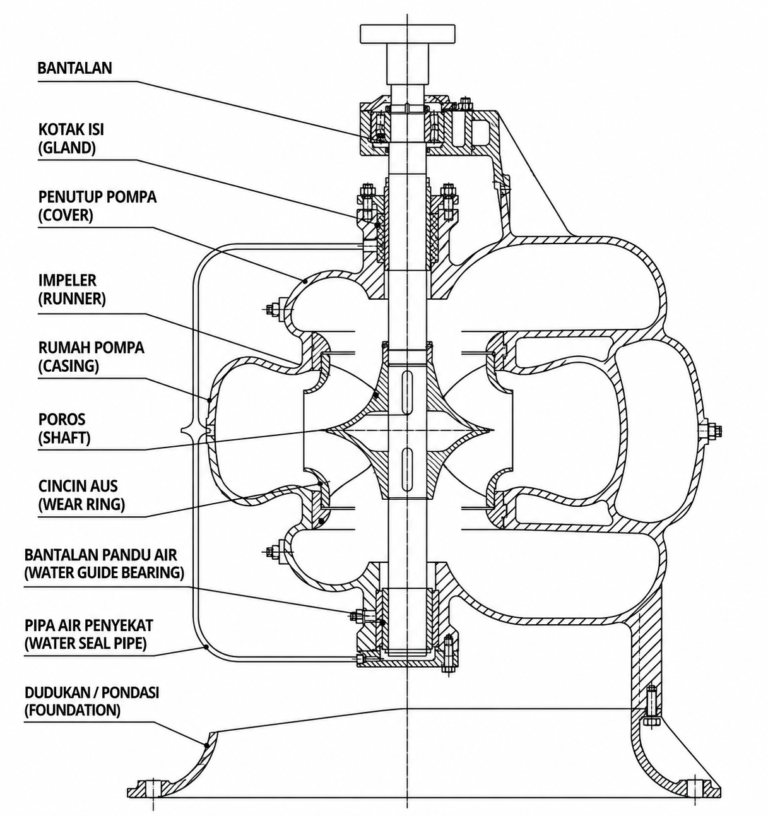

Pompa ini memiliki desain casing terbelah secara horizontal sehingga memudahkan maintenance tanpa harus melepas pipa utama. Impeller double suction memberikan keseimbangan hidrolik yang sangat baik sehingga mengurangi axial thrust dan meningkatkan efisiensi.
Technical Specifications
| Pump Type | Horizontal Split Casing Double Suction Centrifugal Pump |
| Series | ASN Series |
| Construction | Single-Stage, Double-Suction, Split Volute Casing |
| Pump Configuration | Horizontal Split Case |
| Suction Type | Double Suction |
| Casing Design | Axially Split Double Volute |
| Installation | Horizontal Base Mounted |
| Impeller Type | Double Suction Closed Impeller |
| Shaft Arrangement | Between Bearings |
| Seal Type | Mechanical Seal or Packing Seal |
| Bearing Type | SKF / NSK Anti-Friction Bearings |
| Applications | Sea Water Transfer, Cooling Water Systems, Water Supply, Irrigation, Drainage Stations, Power Plants, Shipbuilding, Fire Protection Systems |

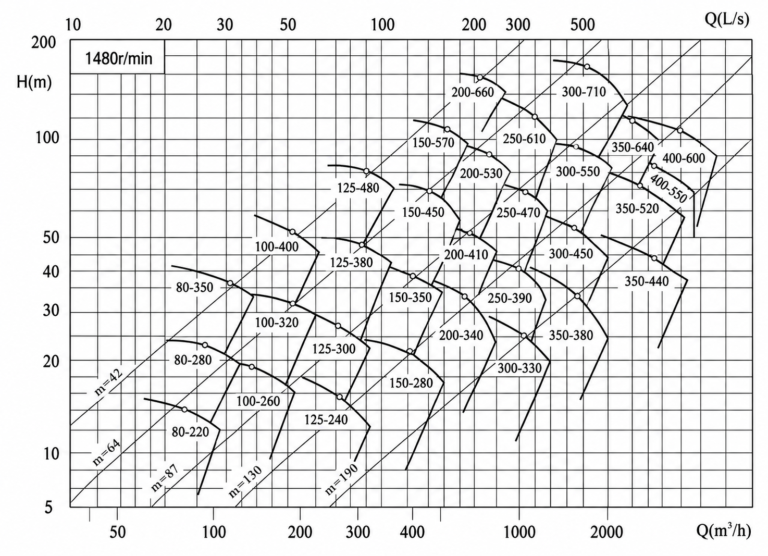

| Flow Capacity | Up to 11,600 m³/h |
| Head Range | Up to 200 m |
| Pump Size | DN80 – DN800 |
| Working Pressure | Standard industrial duty |
| Liquid Temperature | Up to 105°C |
| Solid Content | ≤ 80 mg/L |
| Hydraulic Efficiency | High-efficiency double-suction hydraulic design |
| NPSH Performance | Excellent anti-cavitation characteristics |
| Operating Speed | Typically 980 / 1480 / 2980 rpm (depending on motor selection) |
| Impeller Design | Precision-cast double-suction impeller |
| Motor Type | Three-Phase Induction Motor |
| Mounting | Horizontal Coupled Drive |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 380V / 415V / 660V / Medium Voltage Options |
| Protection Class | IP44 (Standard) / IP55 Optional |
| Insulation Class | Class F |
| Duty Rating | Continuous Duty (S1) |
| Coupling Type | Flexible Coupling |
| Motor Power | Selected according to flow and head requirements |
| Cooling Method | IC411 Air-Cooled (Typical) |
| Pump Casing & Cover | Duplex Stainless Steel 2205 / SS316L / Bronze |
| Impeller | Duplex Stainless Steel 2205 / SS316L / Bronze |
| Wear Ring | Duplex Stainless Steel 2205 / SS316L / Bronze |
| Shaft | Duplex Stainless Steel 2205 |
| Shaft Sleeve | Duplex Stainless Steel 2205 / Bronze / SS316L |
| Fasteners | Stainless Steel |
| Mechanical Seal | Burgmann Mechanical Seal |
| Bearings | SKF / NSK |
| Liquid Type | Sea Water, Cooling Water, Industrial Water |
| Maximum Liquid Temperature | 105°C |
| Maximum Solids Content | 80 mg/L |
| Corrosive Service | Suitable with Duplex SS or Bronze materials |
| Ambient Temperature | Standard industrial environment |
| Continuous Operation | Yes |
| Installation Area | Power Plants, Ports, Marine Facilities, Shipyards, Water Treatment Plants |
| Bearing Cooling Option | Available |
| Casing Cooling Option | Available |
| Suction Diameter | DN80 – DN800 |
| Discharge Diameter | DN80 – DN800 |
| Connection Type | Flanged |
| Flange Standards | GB, HG, DIN, ANSI |
| Pump Orientation | Horizontal |
| Casing Type | Horizontally Split |
| Mounting Type | Baseplate Mounted |
| Shaft Position | Horizontal |
| Maintenance Access | Top-half casing removable without disturbing piping |
| Coupling Arrangement | Flexible Coupling |
