AVS/MVS

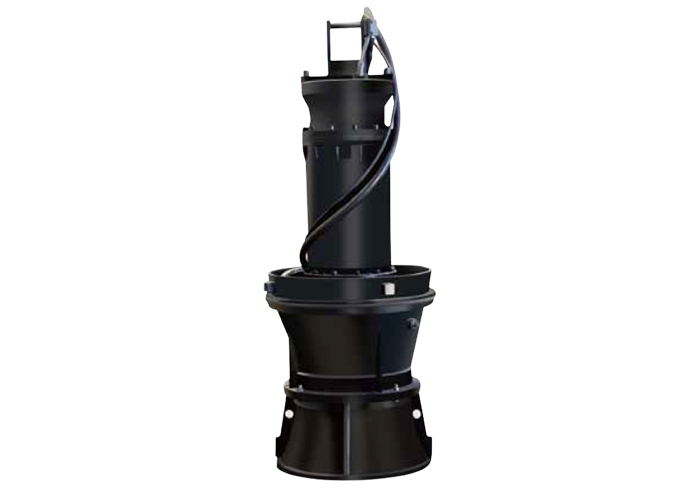

AVS series Axial Flow & MVS series Mixed Flow Submersible Pumps
AVS Series adalah pompa submersible axial flow yang dirancang untuk memindahkan air dalam kapasitas besar dengan head rendah secara efisien dan stabil.
Pompa ini bekerja dengan cara memutar impeller axial di dalam air untuk menghasilkan aliran fluida berkapasitas tinggi, sehingga sangat cocok digunakan untuk kebutuhan sirkulasi, drainase, irigasi, dan pengendalian banjir. Karena motor dan pompa berada dalam satu unit terendam, sistem ini mampu bekerja lebih efisien, hemat ruang, serta mengurangi risiko kehilangan daya saat proses pemompaan.
Desainnya yang kokoh membuat pompa AVS mudah dioperasikan, minim perawatan, dan andal digunakan untuk aplikasi industri maupun infrastruktur skala besar.
Technical Specifications
| Pump Type | Submersible Axial Flow Pump (AVS) / Submersible Mixed Flow Pump (MVS) |
| Series | AVS & MVS Series |
| Construction | Vertical Submersible Pump |
| Hydraulic Design | Axial Flow (AVS) / Mixed Flow (MVS) |
| Installation Type | Elbow Cantilever, Well Cantilever, Concrete Well Installation |
| Suction Type | Flooded Suction |
| Impeller Type | Adjustable Blade Impeller |
| Pump Orientation | Vertical |
| Drive Type | Direct-Coupled Submersible Motor |
| Cooling Method | Liquid-Cooled Submersible Motor |
| Applications | Flood Control, Irrigation, Water Transfer, Municipal Water Supply, Drainage Stations, Sewage Disposal Projects, Cooling Water Circulation |
| Capacity | 500 – 38,000 m³/h |
| Typical Capacity Range | 900 – 12,500 m³/h |
| Head Range | 2 – 20 m |
| Maximum Head | Up to 20 m |
| Pump Diameter | DN350 – DN1400 |
| Working Pressure | Up to 0.6 MPa |
| Efficiency Improvement | 3 – 5% higher than conventional designs |
| Flow Improvement | Approximately 20% higher than previous-generation pumps |
| Operating Speed | Depending on motor selection and hydraulic design |
| Hydraulic Characteristic | Large flow, low-to-medium head operation |
| Motor Type | Submersible Electric Motor |
| Motor Standard | GB755 |
| Protection Class | IP68 |
| Cooling System | ICW08A41 |
| Installation Type | IM3013 |
| Frequency | 50 Hz |
| Voltage Options | 380V, 600V, 6kV, 10kV |
| Maximum Motor Power | Up to 355 kW |
| Insulation Class | F |
| Cable Length | Standard 10 m |
| Thermal Protection | Integrated Overheat Protector |
| Leakage Protection | Built-in Leakage Detection Sensor |
| Pump Casing | Cast Iron, Ductile Iron, Stainless Steel |
| Impeller | Cast Iron, Bronze (Copper Alloy), Stainless Steel |
| Shaft | Stainless Steel |
| Wear Ring | Optional Wear-Resistant Construction |
| Mechanical Seal Housing | Cast Iron / Stainless Steel |
| Fasteners | Stainless Steel |
| Optional Materials | Duplex Stainless Steel, Marine-Grade Stainless Steel |
| Liquid Type | Clean Water, Raw Water, Municipal Water, Light Sewage |
| Maximum Liquid Temperature | ≤ 60°C |
| Minimum Temperature | -20°C |
| Installation Environment | Wet Pit, Intake Structure, Pumping Station |
| Continuous Operation | Yes |
| Dry Running Capability | Available for selected configurations |
| Flood Control Service | Suitable |
| Irrigation Service | Suitable |
| Water Diversion Projects | Suitable |
| Sewage Drainage Systems | Suitable |
| Pump Diameter | DN350 – DN1400 |
| Connection Type | Flanged |
| Suction Configuration | Bell Mouth / Flooded Intake |
| Discharge Connection | Flanged Discharge Pipe |
| Installation Options | Elbow Cantilever, Well Cantilever, Concrete Well |
| Mounting Type | Vertical Submersible |
| Shaft Configuration | Vertical Shaft |
| Cable Entry | Waterproof Cable Gland |
| Standard Accessories | Sewage Grid, Flap Valve, Water Level Switch, Pre-Buried Pipe, Control Panel |
| Suction Pipe Requirement | Pump submergence depth must exceed minimum specified installation datum |

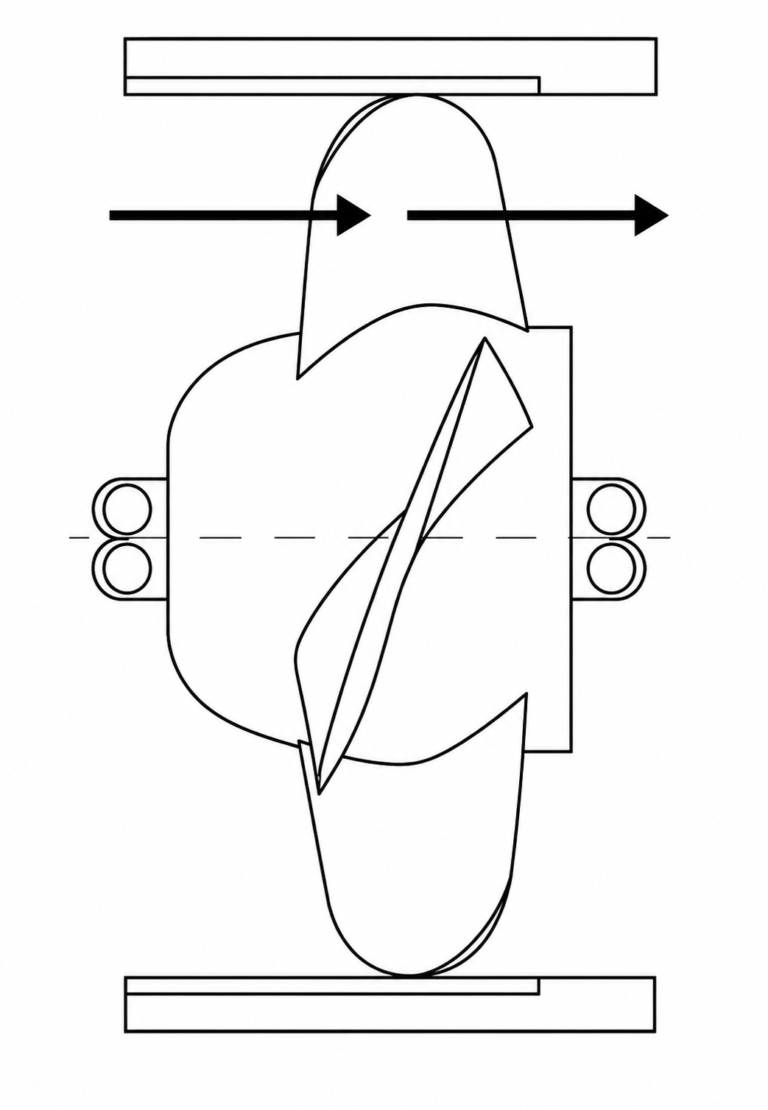

Axial Flow

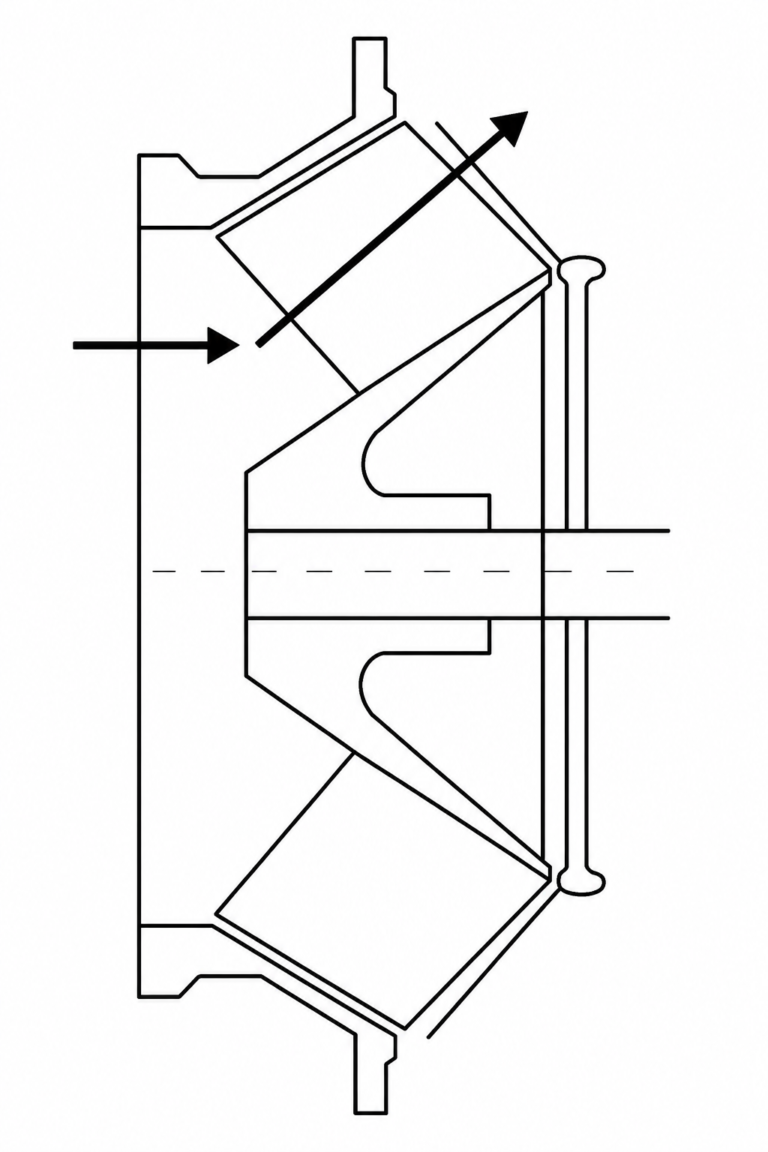

Mixed Flow
