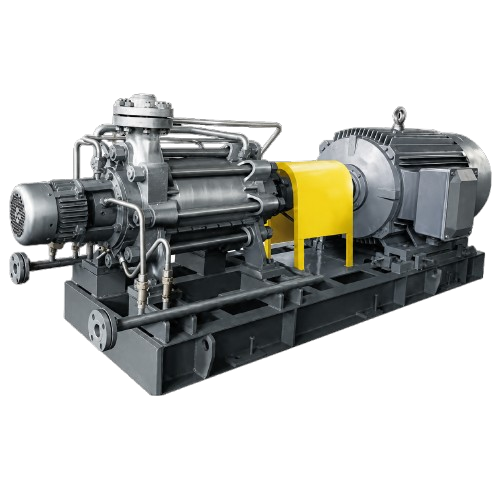

MC Series Horizontal Multistage Centrifugal Chemical Pumps

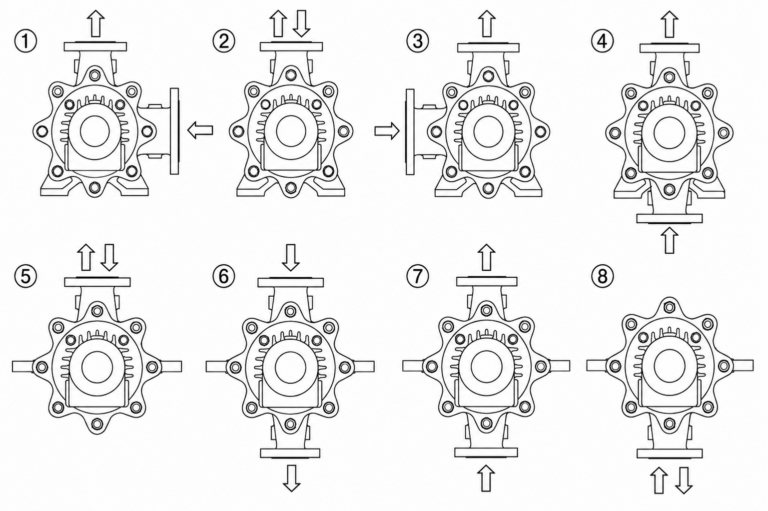

Pompa sentrifugal Multistage Horizontal seri MC. Drum penyeimbang, tipe cakram, penyeimbang gaya dorong aksial. Bantalan radial dan bantalan kontak sudut bergabung bersama untuk menahan gaya sisa. Desain segel mekanis kartrid. Standar API610 untuk pembilasan dan pendinginan. Sesuai dengan suhu cairan yang berbeda, pilih struktur, penyangga kaki, dan bantalan tengah yang tepat. Pengaturan hisap dan buang yang cerdas dapat memenuhi berbagai kebutuhan.
Desain model hidrolik yang berbeda untuk memperluas area BEP guna memastikan pompa bekerja dengan efisiensi tinggi pada berbagai kondisi kerja. Impeller tahap pertama tipe hisap meningkatkan kinerja anti-kavitasi. Desain perawatan yang mudah dan praktis memberikan kenyamanan bagi klien. CW dilihat dari ujung penggerak.
Technical Specifications
| Pump Type | Horizontal Multistage Centrifugal Chemical Pump |
| Series | MC Series |
| Design Standard | API 610 BB4 / GB3215 |
| Construction | Radially Split, Multistage Segmented Casing |
| Pump Arrangement | Between Bearings |
| Suction Type | Single Suction First-Stage Impeller |
| Shaft Support | Double-end Bearing Support |
| Axial Thrust Balance | Balance Drum or Balance Disc |
| Seal Type | Cartridge Mechanical Seal |
| Cooling & Flushing | API 610 Standard Flush and Cooling System |
| Applications | Petrochemical, Refineries, Power Plants, Pipeline Pressurization, Desalination Plants, Industrial Water Supply |
| Capacity (Flow Rate) | Up to 600 m³/h |
| Head Range | Up to 1,200 m |
| Maximum Working Pressure | Up to 15 MPa |
| Temperature Range | -80°C to +180°C |
| Outlet Size | DN40 – DN200 |
| Hydraulic Efficiency | High-efficiency hydraulic design with expanded BEP range |
| NPSH Performance | Enhanced through suction-type first-stage impeller |
| Operating Speed | Typically 1450 rpm or 2900 rpm |
| Hydraulic Design | Multiple hydraulic models available for different duty points |
| Motor Type | Three-Phase Induction Motor |
| Installation | Horizontal Direct Coupled |
| Frequency | 50 Hz / 60 Hz |
| Voltage | According to project requirements |
| Speed | 1450 rpm / 2900 rpm |
| Duty Rating | Continuous Duty (S1) |
| Insulation Class | Class F or higher |
| Protection Class | IP55 or higher |
| Coupling | Flexible Coupling |
| Bearing Arrangement | Radial Bearing + Angular Contact Thrust Bearing |
| Component | Material Options |
| Suction Casing | Forged Carbon Steel / Stainless Steel |
| Discharge Casing | Forged Carbon Steel / Stainless Steel |
| Intermediate Stage Casing | Forged Steel |
| Impeller | Stainless Steel / Duplex Stainless Steel |
| Shaft | Alloy Steel / Stainless Steel |
| Balance Drum / Disc | Stainless Steel |
| Mechanical Seal | API 682 Cartridge Mechanical Seal |
| Bearings | Anti-friction Bearings |
| O-Rings | NBR, Viton, PTFE |
| Fasteners | Stainless Steel |
| Optional Materials | SS316, Duplex SS, Super Duplex SS, Hastelloy |
| Liquid Type | Clean liquids, slightly corrosive liquids, hydrocarbons, petrochemical fluids |
| Fluid Characteristics | Low solids content |
| Temperature Range | -80°C to +180°C |

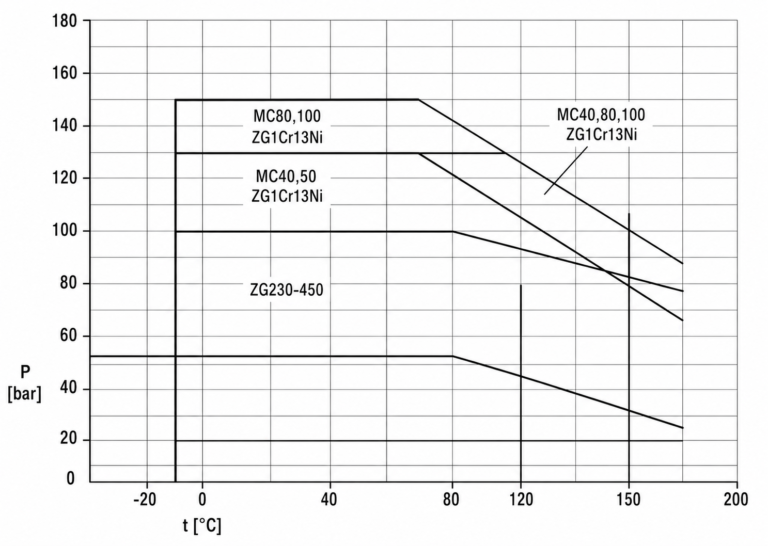

| Maximum Pressure | 15 MPa |
| Ambient Temperature | Standard industrial environment |
| Continuous Operation | Yes |
| Cavitation Resistance | Enhanced by suction-type first-stage impeller |
| High Temperature Support | Centerline support available for elevated temperatures |
| Seal Cooling | API-compliant cooling and flushing arrangements |
| Suction Connection | Flanged |
| Discharge Connection | Flanged |
| Flange Standards | ANSI, DIN, GB, HG, SH, JB |
| Discharge Diameter | DN40 – DN200 |
| Suction Position | Horizontal |
| Discharge Position | Upward Vertical (standard) |

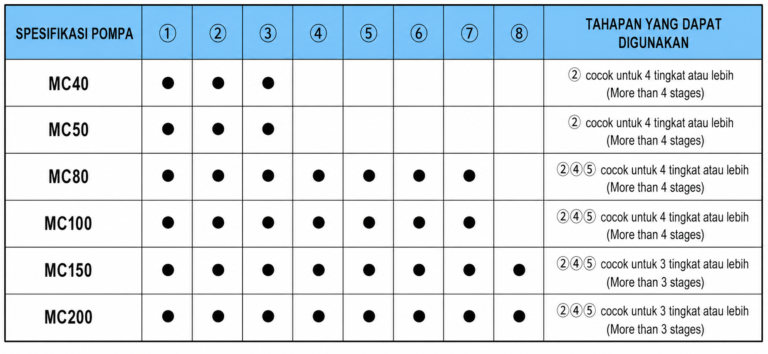

| Optional Nozzle Arrangement | Customizable inlet/outlet orientation |
| Mounting Type | Foot Mounted or Centerline Mounted |
| Pump Structure | API 610 BB4 Radially Split |
| Stage Configuration | Multiple stages according to duty requiremen |
