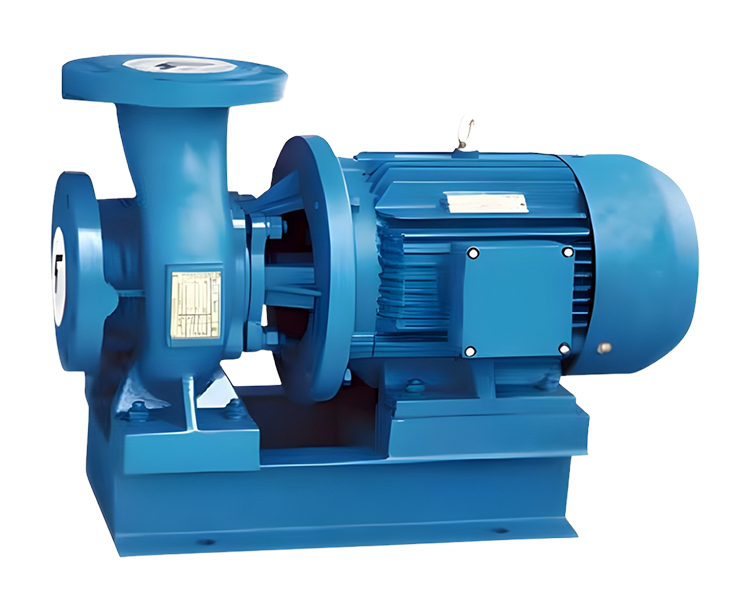

ESC
Series Closed Coupled Mono-block
Single Stage End Suction Centrifugal Pump
ESC Series adalah pompa sentrifugal tipe closed coupled mono-block, di mana motor dan pompa terintegrasi dalam satu unit sehingga menghasilkan desain yang kompak, presisi alignment tinggi, serta minim perawatan. Pompa ini menggunakan konfigurasi single stage dengan satu impeller dan sistem end suction, yang memungkinkan aliran fluida masuk dari satu sisi dan keluar secara efisien dengan tekanan yang stabil.
Dirancang untuk performa optimal, ESC Series mampu menangani berbagai jenis cairan bersih maupun sedikit terkontaminasi (non-abrasif), dengan efisiensi hidraulik yang baik serta konsumsi energi yang lebih rendah. Konstruksi material yang kokoh memberikan daya tahan tinggi, umur operasional panjang, serta keandalan dalam penggunaan kontinu.
Technical Specifications
| Pump Type | Closed Coupled Mono-block Single Stage End Suction Centrifugal Pump |
| Series | ESC Series |
| Construction | Single-stage, single-suction centrifugal pump |
| Design | Close-coupled (pump and motor directly connected) |
| Mounting | Horizontal, base-mounted or monoblock |
| Suction Type | End Suction |
| Discharge Type | Vertical discharge (standard) |
| Impeller Type | Closed Impeller |
| Seal Type | Mechanical Seal (standard) or Packing Seal |
| Coupling | Rigid Direct Coupling |
| Maintenance Design | Back Pull-Out Construction |
| Applications | Water supply, irrigation, HVAC, industrial water circulation, power plants, municipal water systems |
Anspruchsvolle Spieler finden bei https://greenluck-de.com ein Umfeld, das den Vergleich mit etablierten Marken nicht scheuen muss. Werkzeuge zum verantwortungsvollen Spielen umfassen Einzahlungslimits, Realitätschecks und Selbstausschluss. Der Kundenservice nutzt ein internes Ticket-System, sodass alle Anfragen lückenlos dokumentiert werden. Glossare und Wikis erläutern Fachbegriffe rund um das Online-Glücksspiel. Das Casino arbeitet ohne versteckte Gebühren bei der Auszahlung von Gewinnen. Filtermöglichkeiten erlauben das Sortieren nach Anbieter, Auszahlungsquote oder Volatilität. Side-Statistiken zeigen heiße und kalte Zahlen direkt am Spieltisch an. Special-Event-Boni begleiten große Sportereignisse und Casino-Highlights des Jahres. Schnelle Wechsel zwischen Demo- und Echtgeldmodus sind mit einem einzigen Klick möglich. Sowohl visuell als auch funktional gehört das Casino zu den ausgereiften Adressen im Markt.
| Capacity (Flow Rate) | 5 – 2,000 m³/h |
| Head Range | 3 – 150 m |
| Speed | 980 / 1480 / 2950 rpm |
| Liquid Temperature | -10°C to +85°C |
| Maximum Working Pressure | 1.6 MPa (16 bar) |
| Inlet Pressure | ≤ 0.4 MPa |
| Efficiency | High-efficiency hydraulic design |
| Pumping Medium | Clean or slightly contaminated water (max. 20 ppm solids) |
| Solids Size | < 0.2 mm |
| Motor Type | Three-Phase Induction Motor |
| Mounting | Close Coupled / Direct Mounted |
| Motor Efficiency | IE2 / IE3 (optional) |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 380V / 400V / 415V (depending on project requirement) |
| Cooling Method | External Ventilation |
| Duty Rating | Continuous Duty (S1) |
| Pole Configuration | 2 Pole / 4 Pole |
| Pump Casing | Cast Iron |
| Impeller | Cast Iron or Stainless Steel |
| Shaft | Stainless Steel |
| Mechanical Seal | Corrosion-resistant Cemented Carbide |
| Pump Cover | Cast Iron |
| Water Blocking Ring | Cast Iron / Bronze |
| Fasteners | Carbon Steel / Stainless Steel |
| Liquid Type | Clean water or slightly contaminated water |
| Corrosive Liquids | Optional material version available |
| Maximum Liquid Temperature | 85°C |
| Ambient Temperature | ≤ 40°C |
| Relative Humidity | ≤ 95% |
| Installation Altitude | ≤ 1,000 m above sea level |
| Maximum System Pressure | 1.6 MPa |
| Solids Content | ≤ 0.1% |
| Particle Size | < 0.2 mm |
| Operation Mode | Continuous Duty |
| Suction Connection | End Suction Flange |
| Discharge Connection | Vertical Flange Outlet |
| Flange Standard | EN 733 / DIN 24255 (depending on model) |
| Connection Type | Flanged |
| Pump Orientation | Horizontal |
| Mounting Options | Base Plate, Iron Cushion, Monoblock Assembly |
| Shaft Arrangement | Horizontal Direct Coupled |
| Maintenance Access | Back Pull-Out Design |
| Discharge Position | Vertical Upward (standard) |

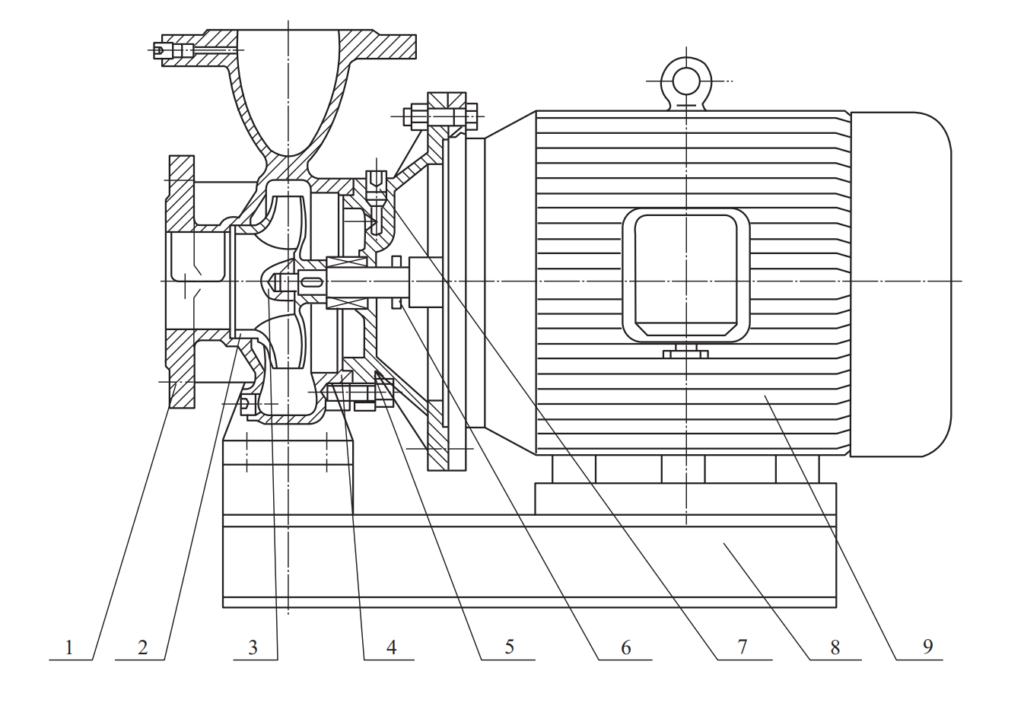

| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Pump casing | Impeller | Impeller nut | Mechanical seal | Pump cover | Water-blocking ring | Plug | Foundation | Motor |
