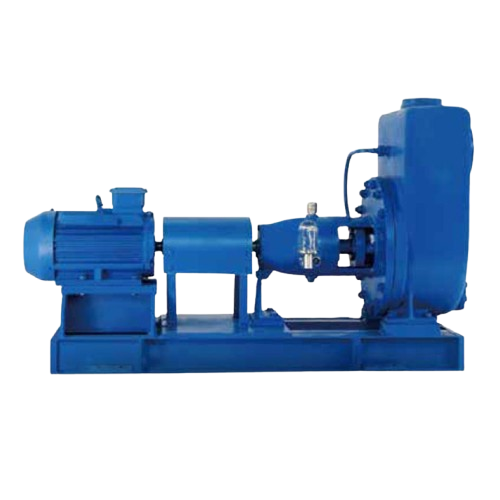

ZX
Self-Priming Centrifugal Pumps for Clean Water or Chemicals
Pompa self-priming seri ZX adalah pompa sentrifugal yang dirancang untuk memompa air bersih atau bahan kimia dengan struktur yang ringkas, mudah dioperasikan, efisiensi tinggi, dan daya tahan lama. Pompa ini cukup memeriksa cairan dalam pompa sebelum mulai digunakan untuk fungsi self-priming.
Pompa ZX umum digunakan pada berbagai aplikasi seperti industri kimia, perminyakan, farmasi, pembuatan kertas, metalurgi, pertambangan, pembuangan limbah, dan penyediaan air untuk berbagai kebutuhan industri dan darurat. Pompa ini terkenal karena keandalannya dan kemudahan dalam perawatan.
Technical Specifications
| Pump Type | Self-Priming Centrifugal Pump |
| Series | ZX Series |
| Construction | Horizontal Single-Stage Single-Suction Centrifugal Pump |
| Priming Type | Self-Priming |
| Installation | Horizontal Base Mounted |
| Impeller Type | Closed Impeller |
| Suction Type | Axial Suction |
| Discharge Type | Radial / Vertical Discharge |
| Shaft Seal | Mechanical Seal |
| Drive Type | Electric Motor |
| Pump Design | Self-Priming Chamber Integrated |
| Standards | ISO-Based Hydraulic Design |
| Applications | Clean Water, Chemical Liquids, Seawater, Industrial Fluids, Irrigation, Municipal Water Supply, Chemical Processing, Pharmaceutical Industry, Paper Mills, Mining, Fire Fighting |
| Flow Capacity | 1.5 – 1,000 m³/h |
| Typical Flow Range | 3.2 – 600 m³/h |
| Head Range | 5 – 132 m |
| Typical Head Range | 12 – 80 m |
| Suction Lift | 5 – 6.5 m |
| Motor Power | 0.55 – 132 kW |
| Speed | 1450 – 2900 rpm |
| Maximum Efficiency | Up to 80% |
| Working Pressure | ≤ 1.6 MPa |
| Self-Priming Time | 1.2 – 3.4 min / 5 m suction lift |
| NPSH Required | 2 – 6.5 m |
| Motor Type | Three-Phase Asynchronous Motor |
| Power Range | 0.55 – 132 kW |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 220V / 380V / 415V / 440V / 480V |
| Speed Options | 1450 rpm / 2900 rpm |
| Insulation Class | Class F |
| Protection Class | IP55 |
| Duty Rating | Continuous Duty (S1) |
| Cooling Method | TEFC (Totally Enclosed Fan Cooled) |
| Explosion-Proof Option | Available for Chemical Applications |
| Coupling Type | Direct Coupled |
| Pump Casing | Cast Iron / Stainless Steel SS304 / SS316 |
| Impeller | Cast Iron / Bronze / Stainless Steel |
| Shaft | Stainless Steel |
| Mechanical Seal | Carbon/Ceramic, SIC/SIC, Tungsten Carbide (Optional) |
| O-Ring | NBR / EPDM / Viton (Optional) |
| Bearing | Heavy Duty Ball Bearing |
| Liquid Type | Clean Water, Seawater, Chemical Liquids, Light Slurries |
| Maximum Liquid Temperature | 100°C |
| Optional High-Temperature Version | Up to 120°C |
| Minimum Temperature | -20°C |
| Maximum Viscosity | ≤ 100 cP |
| Maximum Solids Content | ≤ 30% |
| Maximum Particle Size | ≤ 0.2 mm (for clean-water applications) |
| pH Range | Depends on material selection |
| Ambient Temperature | ≤ 40°C |
| Continuous Operation | Yes |
| Installation | Above Liquid Level |
| Suction Diameter | DN25 – DN300 |
| Discharge Diameter | DN25 – DN300 |
| Connection Type | Flanged |
| Flange Standard | ISO / DIN / ANSI (Optional) |
| Pump Orientation | Horizontal |
| Mounting Type | Baseplate Mounted |
| Coupling Type | Direct Coupling |
| Shaft Arrangement | Horizontal Shaft |
| Priming System | Integrated Self-Priming Chamber |
| Maintenance Design | Back Pull-Out Structure (Selected Models) |
