LY VS4/VS5
VERTICAL CHEMICAL PROCESS
Pompa LY VS4/VS5 Vertical Chemical Process adalah pompa
sentrifugal vertikal tipe long shaft/submerged yang dirancang
untuk kebutuhan industri kimia, petrokimia, refinery,
pengolahan limbah, dan berbagai proses fluida industri.
Pompa ini memiliki motor di bagian atas, shaft vertikal
panjang, serta impeller yang bekerja di dalam cairan sehingga
cocok digunakan pada sump, pit, tangki proses, atau bak
penampungan. Dengan konstruksi vertikal, pompa ini hemat
area instalasi, mampu menangani cairan bersih maupun
cairan terkontaminasi ringan, serta dapat menggunakan
material tahan korosi sesuai karakter fluida.
Technical Specifications
| Pump Type | Vertical Chemical Process Pump |
| Series | LY VS4 / VS5 |
| Standard | API 610 (11th Edition) / ISO 13709 |
| Construction | Single-stage, single-suction centrifugal pump |
| Shaft Position | Vertical |
| Installation | Vertically suspended submerged pump |
| Pump Design | Long-shaft sump pump |
| Suction Type | Flooded suction |
| Impeller Type | Closed Impeller |
| Coupling | Flexible Coupling |
| Bearing Support | Sliding bearing & line shaft support (VS4), cantilever shaft design (VS5) |
| Rotation Direction | Clockwise (CW) viewed from drive end |
| Applications | Petrochemical, chemical processing, wastewater treatment, power plants, refineries, tank farms, sewage systems |

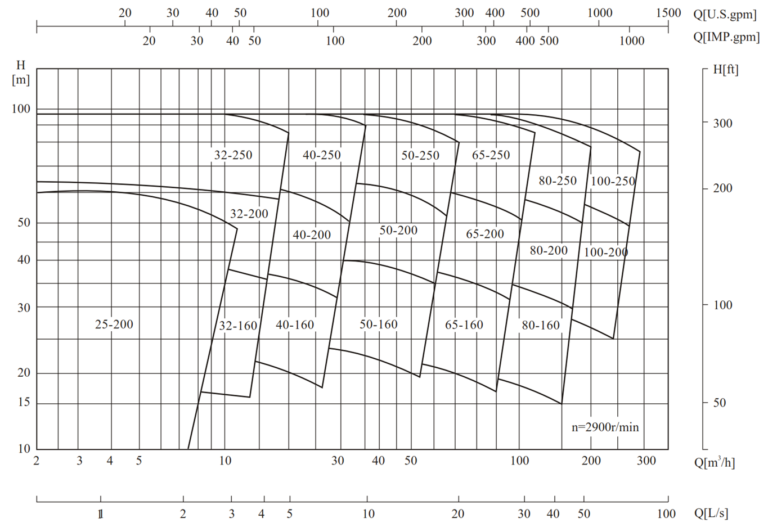

| Capacity | 2 – 400 m³/h |
| Head | 5 – 100 m |
| Maximum Head | Up to 125 m (VS4 design) |
| Maximum Capacity | Up to 800 m³/h (depending on configuration) |
| Working Pressure | Up to 1.6 MPa |
| Maximum Design Pressure | Up to 20 bar |
| Temperature Range | -20°C to +125°C |
| Maximum Temperature (Special Design) | Up to 500°C |
| Speed | Typically 1450 / 2900 rpm |
| Hydraulic Design | Single volute or double volute for larger sizes |
| Efficiency | High-efficiency hydraulic design with reduced vibration |
| Motor Type | Vertical Electric Motor |
| Drive Type | Direct Coupling |
| Mounting | Top-mounted |
| Frequency | 50 / 60 Hz |
| Voltage | As specified by project requirement |
| Motor Brands (Optional) | ABB, Siemens, WEG |
| Coupling Type | Flexible Coupling |
| Duty | Continuous Operation |
| Bearing Arrangement | Angular-contact ball bearing above liquid level |
| Casing | Carbon Steel, SS316, Duplex Stainless Steel |
| Impeller | SS316, Duplex Stainless Steel |
| Shaft | Stainless Steel |
| Sliding Bearing | Wear-resistant composite bearing |
| Support Plate | Carbon Steel / Stainless Steel |
| Coupling | Alloy Steel |
| Fasteners | Stainless Steel |
| Optional Materials | Super Duplex, Hastelloy, NACE-compliant materials |
| Corrosion Protection | Available for highly corrosive chemical services |
| Liquid Type | Chemical liquids, sewage, hydrocarbons, petrochemical fluids |
| Fluid Condition | Clean or contaminated liquids |
| Corrosive Service | Suitable |
| Solids Handling | Suitable for light solids content |
| Ambient Temperature | Standard industrial environment |
| Working Temperature | -20°C to +125°C |
| Maximum Special Temperature | Up to 500°C |
| Priming Requirement | Not required (submerged design) |
| NPSH Requirement | Low NPSH due to submerged installation |
| Discharge Connection | Side discharge through column |
| Connection Type | Flanged |
| Flange Standard | ANSI / API / ISO |
| Discharge Size | 50 – 250 mm (2″ – 10″) |
| Support Plate | Circular or rectangular mounting plate |
| Mounting Type | Sump-mounted |
| Pump Length | 0.65 – 6.0 m standard |
| Maximum Custom Length | Up to 10 m |
| Submergence | Up to 6 m |
| Hydraulic Frame Sizes | 040×025×145 to 250×200×410 |
| Nozzle Arrangement | Side or top discharge depending on design |
