In-line Vertikal IN Pumps
Pompa IN adalah tipe pompa yang dirancang khusus untuk memompa air bersih atau cairan dengan karakteristik fisik dan kimia yang hampir mirip dengan air. Pompa ini memiliki desain pemasangan secara vertikal dengan struktur yang kompak, sehingga sangat efisien dalam penggunaan ruang instalasi. Desain vertikal ini memudahkan integrasi pompa pada area dengan keterbatasan ruang tanpa mengurangi performa atau efisiensinya. Vertical In-line Pump cocok untuk air bersih atau cairan dengan karakteristik fisik dan kimia yang mirip dengan air. Pemasangan vertikal dengan struktur kompak, menghemat ruang pemasangan.
Technical Specifications

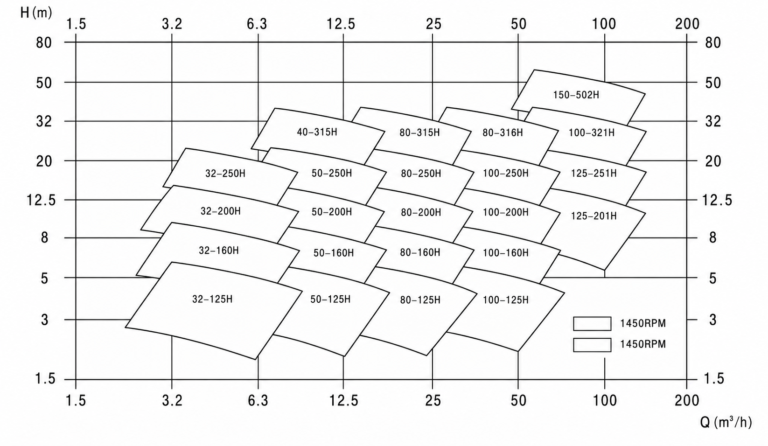

| Pump Type | Vertical Inline Centrifugal Pump |
| Series | IN / Vertical In-line |
| Design | Single-stage centrifugal |
| Installation | Vertical pipeline mounted |
| Suction & Discharge | Inline (same centerline) |
| Priming Type | Non-self priming |
| Coupling | Close-coupled / Direct motor connection |
| Applications | HVAC, booster systems, chilled water, industrial circulation, fire fighting, water supply |
| Pump Standard | DIN / ANSI / API depending on model |
| Structure | Compact space-saving vertical structure |
| Seal Type | Mechanical Seal |
| Flow Capacity | 1 – 3500 m³/h |
| Head Range | 10 – 280 m |
| Maximum Pressure | Up to 40 bar |
| Efficiency | Up to 80% |
| Speed | 1450 / 2900 rpm |
| NPSHr | 1.2 – 4 m |
| Temperature Range | -20°C to +350°C (depending on material & seal) |
| Pump Size | DN25 – DN500 |
| Motor Type | TEFC Electric Motor |
| Motor Efficiency | IE2 / IE3 Premium Efficiency |
| Voltage | 220V / 380V / 415V / 460V |
| Frequency | 50 / 60 Hz |
| Speed | 1450 rpm / 2900 rpm |
| Insulation Class | Class F |
| Protection Class | IP55 |
| Cooling System | Air cooled |
| Drive Type | Direct Coupled |
| VFD Compatibility | Available |
| Motor Mounting | Vertical |
| Pump Casing | Cast Iron / Ductile Iron / SS304 / SS316 |
| Impeller | Stainless Steel / Bronze / Cast Iron |
| Shaft | SS410 / SS420 / SS316 |
| Mechanical Seal | Carbon-Ceramic / Silicon Carbide |
| Shaft Sleeve | Stainless Steel |
| O-ring / Gasket | NBR / EPDM / Viton |
| Wear Ring | Bronze / Stainless Steel |
| Optional Material | Duplex SS / Super Duplex / Hastelloy |
| Liquid Type | Clean water / light chemical liquid |
| Max Liquid Temperature | Up to 350°C |
| Ambient Temperature | ≤ 40°C |
| Maximum Working Pressure | Up to 40 bar |
| Fluid Condition | Low viscosity / low solids |
| Installation Area | Indoor / Outdoor |
| Operation Type | Continuous |
| Suitable Systems | HVAC, booster, circulation, RO, industrial cooling |
Connection Type | Flanged / Threaded |
| Flange Standard | ANSI / DIN / JIS |
| Suction Size | DN25 – DN500 |
| Discharge Size | DN25 – DN500 |
| Pump Orientation | Vertical Inline |
| Mounting Type | Pipeline mounted |
| Coupling Type | Close-coupled / Flexible coupling |
| Footprint | Compact / space-saving |
| Pipe Alignment | Same centerline suction & discharge |

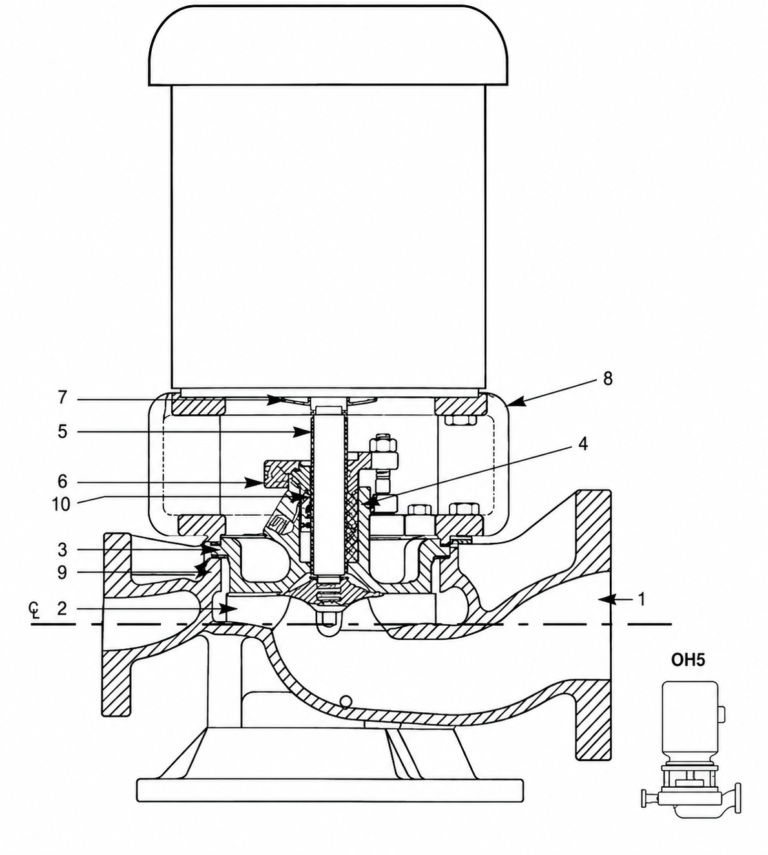

| No. | Keterangan bagian pompa |
| 1. | Discharge Nozzle (Outlet) |
| 2. | Suction Nozzle (Inlet) |
| 3. | Impeller |
| 4. | Pump Casing |
| 5. | Shaft (Poros) |
| 6. | Mechanical Seal / Packing Seal Area |
| 7. | Motor Stool / Bracket (Dudukan Motor) |
| 8. | Motor |
| 9. | Wear Ring / Seal Ring |
| 10. | Bearing (Bantalan) |
